IP paging and intercom systems

IP Network Attached Paging and Intercom Systems

IP Based Paging Systems for Campus Wide Emergency Paging and Intercoms

Paging system diagram

Paging System Summary

paging and intercoms across the campusNow it's easier than ever to install a campus wide paging or intercom system using your existing Ethernet network. It can be used to provide emergency notification to the campus or specific messages to each room. Small amplifiers can be placed wherever you have a network drop. No need for long speaker wire connections from a large central amplifier.

IP Paging Amplifiers

IP7 paging amplifierIP7 Amplifiers
The core hardware component to Digital Acoustics' paging solution is the IP7 IP Audio Amplifier module. You can select the model that meets your exact sound requirements.

The IP7-SS8 uses PoE power from the network and provides up to 8 watts of sound to attached speakers.

The IP7-SS20 provides 20 watts while the IP7-SS40 provides up to 40 watts of audio. These small amplifiers can drive a single speaker, or multiple speakers in an array by using the universal 70V transformer. The quantity of speakers attached to an amplifier is determined by the sound volume levels required. For example, with a maximum output of 20 watts (using an 8 Ohm speaker), the IP7-SS20 is capable of driving paging horns with sound pressure levels in excess of 120 dB SPL. This is about the sound of nearby thunder or the sound made by a child screaming. You don't want to listen to that too long because it will hurt your ears. For these higher output applications an external power supply is required.

The latest IP7-SE8 not only can be powered over Ethernet (PoE), it has dual Ethernet ports and supports two-way audio. Product sheet.

IP Amplifier Models
IP7-SS40 40 Watt, Single Ethernet port
IP7-SS20 20 Watt, Single Ethernet port
IP7-SS8 8 Watt, Single Ethernet port, PoE
IP7-SE8 8 Watt, Dual Ethernet port, PoE, 2-Way Audio



Speakers with Built-In Amplifiers

powered ip speakerSpeaker systems that connect directly to the network are the simplest and quickest to install. No need to run speaker wires, just plug the speaker system into your PoE type network drop and you're done. It's easy.

These speakers have built-in amplifiers that provide 8 Watts of power from their PoE connection. The amount of sound (dB) available depends on the type of speaker used. If you need more sound power then you require a separate amplifier and speaker.

Here are some examples of integrated powered speakers that are powered over the network using PoE:

Model Type Description Sound Output
Spkr-IP SYS1 Wall 8" Wall, vandal resistant. Frequency Response: 65 Hz - 17 kHz EIA 462A Standard Sound rating: 92dB SPL, 1W/ 1M.
99 dB SPL, 5W/ 1M.
Spkr-11-VCP Wall, Bi-directional Size 2, 4” Square 4 ohm Moisture Resistant. Speaker Power Rating 10 watts each. Magnet Type and Weight BeFe Ceramic 4.8 oz. Dispersion 130 degrees. Frequency Response 130 Hz - 9 kHz. Hallway length for optimum coverage 40 – 110 feet. 92 dB SPL at 1 Watt 1 Meter.
Maximum SPL 98 dB SPL at 8 Watts 1 Meter
SPKR-IP System 12 2 x 2 lay in drop ceiling tile speaker IP enabled speaker system. 2 x 2 lay in drop ceiling tile speaker and amplifier. A complete loudspeaker assembly, with 8” frame, perforated steel baffle and integral back box. 65 Hz-17 kHz EIA 426A Standard. 100° included angle -6 dB/ 2 kHz. 92 dB SPL, 1W / 1M
99 dB SPL 5W / 1 M


Just the Speakers that Connect to Your Amplifiers

speakersEvery acoustic environment is unique and using the right speakers is important in providing intelligible public address solutions. Kintronics offers a wide range of speakers.

You can select wall mounted, drop-in ceiling speakers, outdoor horns and even speakers that direct sound in two directions down a hallway. Before selecting the speaker Kintronics will help you do a sound level analysis. We will make sure that you have the right sound level for each area. Choose from:

  • 8" Ceiling Mounts - Round and Square
  • Surface Mounted Enclosures - Square and Sloped
  • Internal Horns
  • External Paging Horns
  • Corrections Grade Solutions (Vandal Proof)
  • Weather Proof & Flame-retardant
  • Add any of our other portable PA systems for high quality sound
Sample Speaker Models:
KLIS8T72
Drop ceiling loudspeaker assembly
Mini400K-8 Weatherproof horn, 120db output sound
KPBC6T72K3 Wall mount speaker. 6-inch speaker.
Cell10BDT
Bidirectional extruded aluminum sound projector. Two 5 Twin-cone Speakers
We have many more speakers to choose from. Contact us for the complete list



IP Intercoms are Network Attached

IP-intercomsIntercoms allow you to communicate to a specific room, or any location you have a network connection. For example you can place intercoms in each classroom or office or even use it at a door to control entry.

There are a number of different network attached intercoms. They are all powered using PoE or optional power adapter for easy installation. Select desktop, surface mount models or outdoor intercoms.

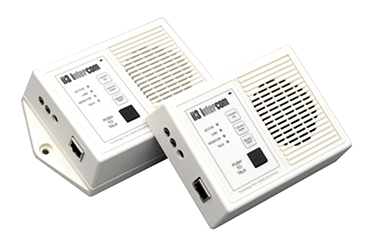

The IP7-EDW solutions are designed for desktop convenience; and the IP7-ESW is designed to be surface mounted in secure locations. Also available in Black desktop model (EDB) or surface mount (ESD). For more details take a look at the Indoor Intercoms Product Specifications.

Indoor intercom Features:

  • High quality integrated speaker and microphone
  • Four button controls include Volume Up/Down, Monitor/Open, and Push-to-Talk
  • Four LED indicators include Active, Link, Monitor and Talk
  • TalkMaster LE Software included
  • Power-over Ethernet (PoE)
  • 3.5mm external jacks for Mic In and Speaker Out

Outdoor units are available with protective enclosure or ready to be mounted to an electric box. For example the model CIS4/8/box/ST includes the outdoor ready enclosure, network interface box and a call button. For more details take a look at the Outdoor Intercoms Product specifications.

Intercoms for Door Access Control

Outdoor intercoms can also be used to provide manual door access control. You can select an intercom by itself, or integrated with an IP camera system, or even integrate with an IP door access system.

The iDor intercom system includes a built in camera and allows you to anser the door from your smart phone or mobile device. These special intercoms are easily connected to an electric lock through a relay or integrated with an IP door access control system. Take a look at all the intercoms that can integrate with IP Camera security systems. more...

Paging Software

Talkmaster-logoTalkmaster is the control and management software for paging and intercom communications. There are a number of options. Talkmaster-Solo comes at no charge with your amplifiers or intercoms, and allows you to make announcements to all your IP amplifiers and IP intercoms on the network. Talkmaster-Enterprise adds additional capability such as allowing you to make pages from multiple computer consoles.


Talkmaster-Solo

talkmaster-soloThis full featured control software comes without charge with any amp or intercom. It allows you to make a page or talk to all your intercoms from a single computer console. It includes a sophisticated fail-over feature so if the first console is not operating it automatically switches to a secondary or even third level computer console.

This paging application software includes functions such as talk and listen, page and manage intercoms and amplifiers from your Windows PC. Functions include:

  • Selective or master call to page all stations
  • Master control and auto detection
  • Remote door release and GPIO control
  • Record, log and archive audio sessions
  • Audio file playback (.WAV)
  • Remote and local digital volume control

Talkmaster-Enterprise

Talkmaster-EE softwareFor sophisticated users and applications, TalkMaster Enterprise Edition provides flexibility in addressing the special needs of complex, multi-station, multi-operator and multi-site installations. For more details take a look at the Product sheet

Whether your application is a parking facility, educational institution, corrections, high-security port authority, or many other applications, TalkMaster-EE provides:

  • Faster call response with rules-based call routing,
  • Enhanced staff utilization by consolidating monitoring operations,
  • System Flexibility to address changing facility layouts,
  • Configuration flexibility allows you to tailor your system to each environment,
  • Secured administrator configuration and operator log-in.
  • Digital Audio Recorder and Audit functions.

Designed to manage intercom and public address operations over IP networks, this audio paging software provides for flexibility in design, engineering and operation.

TalkMaster-EE's server based topology can manage 1,000’s of intercom and paging end-points from multiple sites and consoles, regardless of geography. A powerful set of intercom call queue rules establishes site-specific call response hierarchies.

Importantly, this solution provides organizations with the flexibility to add intercom or public address end-points one at a time. Because TalkMaster is a software solution, there is no need for additional head-end chassis or cards

A key feature in the TalkMaster-EE Communication System is real-time call handling, using rules-based queue management. Intercom queues are groups of intercoms that may be assigned to human console operators acting in management teams.

TalkMaster-EE Communication Management Software records every substantial aspect of an intercom call transaction; among the information gathered and available on the Administration Console Screen are:

  • Console operator and administrator sign-in and sign-off,
  • Call start/stop including source,
  • Recording of both audio paths, and
  • Intercom call station status

TalkMaster-EE can support a single building, a campus or multiple sites— locally or globally.

Add School or factory Bell Scheduling with the optional Bell commander software.

Resources

The following resources can be used to help you understand the technology. Contact us for help with your system. Our engineers will make sure you get the exact system you need.

Technical and Application Articles

Paging and PA Over IP
You may have heard about Voice over IP or VoIP, well now it’s paging over IP.  This new public address system provides voice and intercom over the network. But how does this all work? This article describes how this technology works.

Comparison of the Classic Paging System to the New PA over IP System
This article Reviews and Compares the analog paging system to the new IP paging system. It compares the cost of installing a classic paging system that uses a large central amplifier to the latest network attached PA systems that use distributed small amplifiers.

Intercoms for IP Cameras
An intercom can be used to manually control a door. It can be used with an IP camera so you can talk and see who's at the door.

Let the Recorder Beware
This article discusses the legal issues of recording audio.

Selecting the Right Speaker
How to get the best sound requires some planning. Understanding all the speaker specifications will help you make the right choice for each area.

How Loud is Loud?
This article discusses how to determine how loud your PA system should be and how to specify the type of equipment you need.

Kintronics Technology Notes Newsletter:
Take a look at our latest newsletter and if you would like to have this automatically sent to you, just fill out the form.

Technical White-paper:
How to Create the Complete Safety and Security System. This white-paper describes how to make your world safer by integrating IP camera systems, access control and emergency paging systems.

Blogs

There are two blogs. Our technical blog provides up to date technical insights about the technology. Or, for a different slant on the technology, take a look at Virginia's blog. Virginia makes it easy to understand the technology.

Technical Videos

These videos provide an overview of the technology. Take a look at our latest video describing the IP camera system components and setting objectives. More...


Technical Support

Paging and Security systems can be complex because they include many different components that have to work together. Kintronics is a resource for engineering and integration of all your security projects. We can design your complete system so don't hesitate to contact us for assistance.

After purchasing your system we make sure that it works exactly the way you expect. You can contact us for help with your installation and any technical support you may need.

We provide technical support and warranty support. Contact us at 1-800-431-1658 or 914-944-3425 whenever you need assistance.
